Test Pieces

Test Pieces

Showing all 8 results

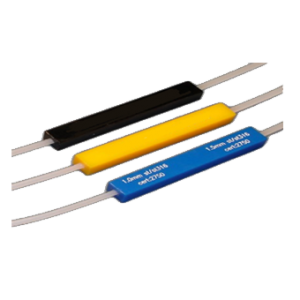

  • Flexible test stick

    Manufactured in the standard solid colours, Blue, Black, Yellow with a 300mm long flex incorporating 2 test balls per test piece.

    Very durable and very flexible, which makes them ideal for “pipeline detectors”.

    Available up to 5mm ball size as a standard (special lengths also available).

    Tubing manufactured from FDA nylon transparent tubing with bearing securely fixed in end of tubing. Very durable, very flexible – possible to bend through 90 degrees. Ideal for pipeline detectors.

    Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    AVAILABLE BALL SIZES:
    0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm.

    COLOUR RANGE:

    Ball material Solid Colour
    Ferrous SOLID BLACK
    Non-Ferrous SOLID YELLOW
    Stainless Steel SOLID BLUE

    PRODUCT PDF

    Read more

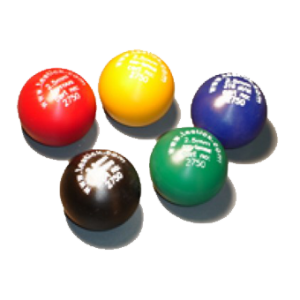

  • Test Ball

    Manufactured in the standard solid colours, Blue, Black, Yellow.

    Available up to 8mm ball size with diameters 15mm, 19mm, 25mm and 32mm.

    Each test piece has a number etched into it, which relates back to the Certificate of Conformity supplied with each test piece.

    AVAILABLE BALL SIZES:
    0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm ,7.5mm, 8.0mm

    COLOUR RANGE:

    Ball material Solid Colour
    Ferrous SOLID BLACK
    Non-Ferrous SOLID YELLOW
    Stainless Steel SOLID BLUE

    PRODUCT PDF

    Read more

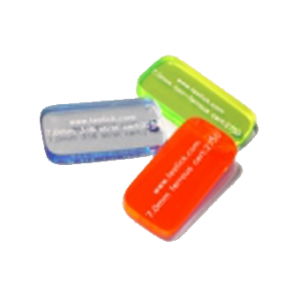

  • Test Card

    Available in a wide range of colours with ball sizes up to 12mm.

    Standard Test Puck size: 80mm diameter x 40mm x 5-20mm (subject to ball size).

    Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    AVAILABLE BALL SIZES:
    0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm ,7.5mm, 8.0mm
    8.5mm, 9.0mm, 9.5mm, 10.0mm, 10.5mm, 11.0mm, 11.5mm, 12.0mm

    COLOUR RANGE:

    Ball material Solid Colour High Visual Colour
    Ferrous SOLID BLACK HIGH VISUAL RED
    Non-Ferrous SOLID YELLOW HIGH VISUAL GREEN
    Stainless Steel SOLID BLUE HIGH VISUAL BLUE

    PRODUCT PDF

    Read more

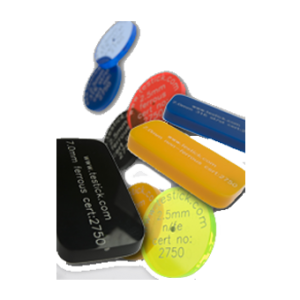

  • Test Pieces

    Autopac Systems offers a range of high-visibility, colour coded precision metal detector test pieces of outstanding quality.

    Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    • Calibrated & Certificated bearings to BS EN, ISO9002 and UKAS Calibration.
    • High-visibility colour and coding system for simple visual verification.
    • Certification No. detailed on each test piece.
    • Certificate of conformity supplied with each test piece.
    • Quality controlled ball bearings to ensure consistency.

    Test Pieces:
    Available with Ferrous, Non-Ferrous or Stainless Steel (304 & 316 grade) metal test ball bearings.
    Laminated test cards available with metal or glass (soda lime) test ball.

    PRODUCT PDF

    Read more

  • Test Puck

    Available in a wide range of colours with ball sizes up to 12mm.

    Standard Test Puck size: 38mm diameter x 5-20mm (subject to ball size).

    Pharmaceutical Test Puck: 15mm diameter with ball sizes up to 2.5mm.

    Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    AVAILABLE BALL SIZES:
    0.4mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm, 9.5mm, 10.0mm, 10.5mm, 11.0mm, 11.5mm, 12.0mm.

    COLOUR RANGE:

    Ball material Solid Colour High Visual Colour
    Ferrous SOLID BLACK HIGH VISUAL RED
    Non-Ferrous SOLID YELLOW HIGH VISUAL GREEN
    Stainless Steel SOLID BLUE HIGH VISUAL BLUE

    PRODUCT PDF

    Read more

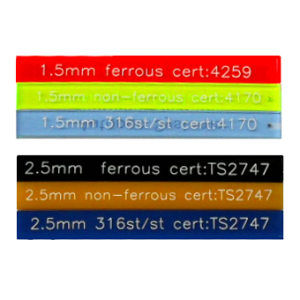

  • Test Stick

    Available in a wide range of sizes and colours, the Test Stick is the most commonly used and easily recognizable test piece format. Suitable for a wide range of applications and available as a standard up to 12mm ball size.

    Size: 100mm x 10mm x 5-20mm (subject to ball size).

    Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    AVAILABLE BALL SIZES:
    0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm ,7.5mm, 8.0mm
    8.5mm, 9.0mm, 9.5mm, 10.0mm, 10.5mm, 11.0mm, 11.5mm, 12.0mm, 12.5mm

    COLOUR RANGE:

    Ball material Solid Colour High Visual Colour
    Ferrous SOLID BLACK HIGH VISUAL RED
    Non-Ferrous SOLID YELLOW HIGH VISUAL GREEN
    Stainless Steel SOLID BLUE HIGH VISUAL BLUE

    PRODUCT PDF

    Read more

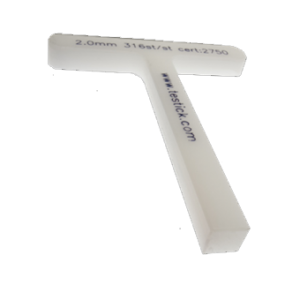

  • Test T-Handle

    Available in lengths up to 1.75 meters, with ball sizes up to 4mm.

    Manufactured from durable polyethylene material, semi-flexible through 45 degrees.

    Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    AVAILABLE BALL SIZES:
    0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm

    PRODUCT PDF

    Read more

  • X-Ray Test Pieces

    Autopac Systems offers a range of high-visibility, colour coded precision metal detector test pieces of outstanding quality. Each test piece has a number etched onto its side, which relates back to the Certificate of Conformity supplied with each test piece.

    • Calibrated & Certificated bearings to BS EN, ISO9002 and UKAS Calibration
    • High-visibility colour and coding system for simple visual verification
    • Certification No. detailed on each test piece
    • Certificate of conformity supplied with each test piece
    • Quality controlled ball bearings to ensure consistency

    Test Pieces:
    Available with Ferrous, Non-Ferrous or Stainless Steel (304 & 316 grade) metal test ball bearings.
    Laminated test cards available with metal or glass (soda lime) test ball.

    Read more
